C$114.95
Add to cart

DMM Dragonfly Micro Cam

DMM
DMM Dragonfly Micro Cam
DMM Dragonfly Micro Cam
DMM Dragonfly Micro Cam
DMM Dragonfly Micro Cam
DMM Dragonfly Micro Cam
DMM Dragonfly Micro Cam
DMM Dragonfly Micro Cam
DMM Dragonfly Micro Cam

DMM pulled out all the stops to produce this is beautiful piece of kit and it really shows. The Dragon Cams are a perfect blend of strength, lightness and function; put simply they are a joy to use. Read more..

In Stock: 4-10 Business Days.

The same camming angle of 13.75°, as used with the Dragons, provides the optimum balance of holding power and range. You will appreciate the holding power of the TripleGrip lobes with their ‘raw alu’ surface, particularly on smooth rock types such as slate and limestone. The narrow head width and compact trigger allow the cams to be placed deep in small pockets.

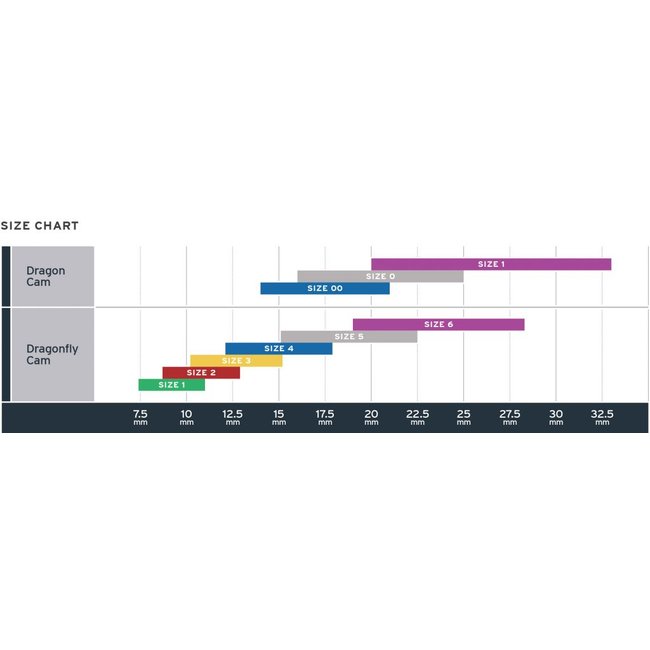

VIEW Dragonfly Size Chart

  • 13.75° camming angle - proven optimum combination of holding power, range and performance
  • TripleGrip lobes with a ‘raw alu’ surface – improved grip
  • Ergonomic thumb loop and trigger – easy to handle
  • Flexible stem cable – minimizes walking
  • Narrow head width – fits small pockets
  • Compact trigger bar - allows deep placements
  • Colour coding – quick and easy identification
  • Extendable 11mm sling with compact stitch pattern – extend either strand
  • Complement Dragon Cams – size 4, 5 and 6 Dragonfly micro cams overlap with size 00 to 1 Dragons
DESCRIPTION WEIGHT COLOUR SIZE ACTIVE STRENGTH CAM RANGE
Dragonfly 1 55 Green 1 6 kN 7.8-11mm
Dragonfly 2 56 Red 2 6 kN 8.7-12.9mm
Dragonfly 3 65 Gold 3 8 kN 10.2 - 15.2mm
Dragonfly 4 67 Blue 4 8 kN 12.1 - 17.9mm
Dragonfly 5 70 Silver 5 9 kN 15.1 - 22.5mm
Dragonfly 6 73 Purple 6 9 kN 19 - 28.3mm
Weight
55g (1) / 56g (2) / 65g (3) / 67g (4) / 70g (5) / 73g (6)
Strength
6kN (1,2) / 8kN (3,4) / 9kN (5,6)
Range
7.8mm-11mm (1) / 8.7-12.9mm (2) / 10.2-15.2mm (3) / 12.1-17.9mm (4) / 15.1-22.5mm (5) / 19-28.3mm (6)
Sling Material
Dynatec
Extendable Sling
Yes
Axle Type
Single
Head Width
34mm (1) / 34mm (2) / 36mm (3) / 36mm (4) / 36mm (5) / 37mm (6)
Weight
55g (1) / 56g (2) / 65g (3) / 67g (4) / 70g (5) / 73g (6)
Strength
6kN (1,2) / 8kN (3,4) / 9kN (5,6)
Range
7.8mm-11mm (1) / 8.7-12.9mm (2) / 10.2-15.2mm (3) / 12.1-17.9mm (4) / 15.1-22.5mm (5) / 19-28.3mm (6)
Sling Material
Dynatec
Extendable Sling
Yes
Axle Type
Single
Head Width
34mm (1) / 34mm (2) / 36mm (3) / 36mm (4) / 36mm (5) / 37mm (6)
