C$32.95
Add to cart

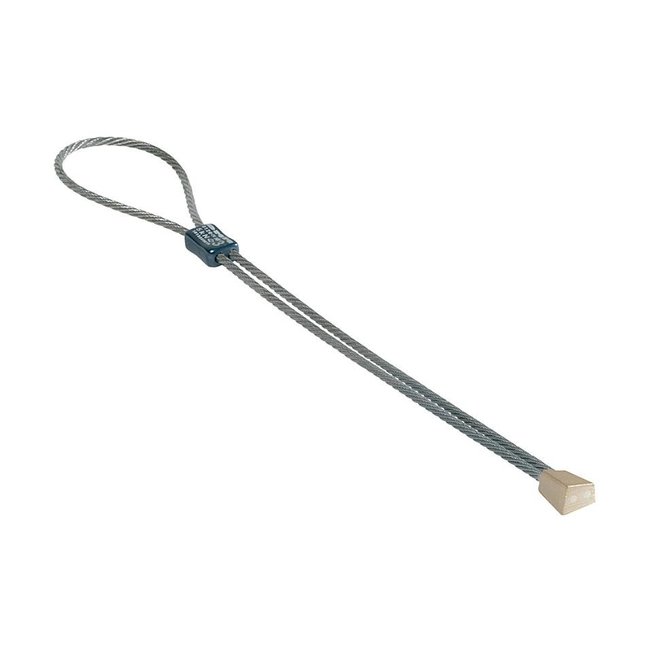

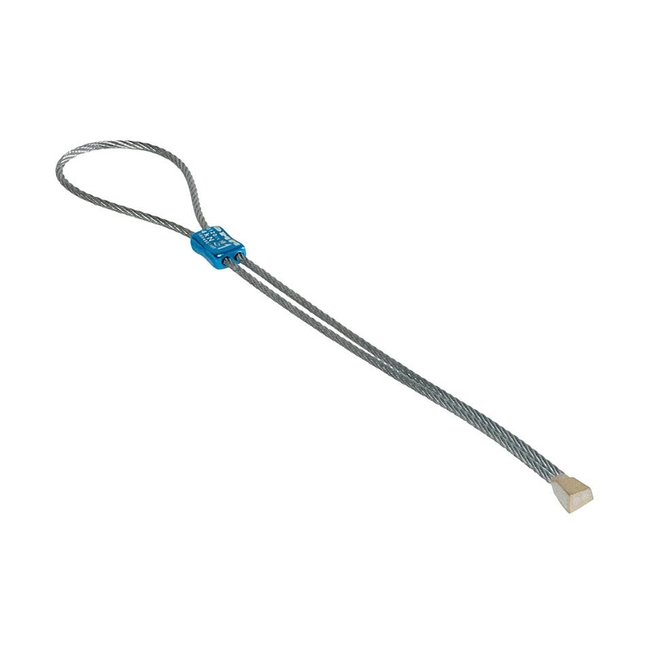

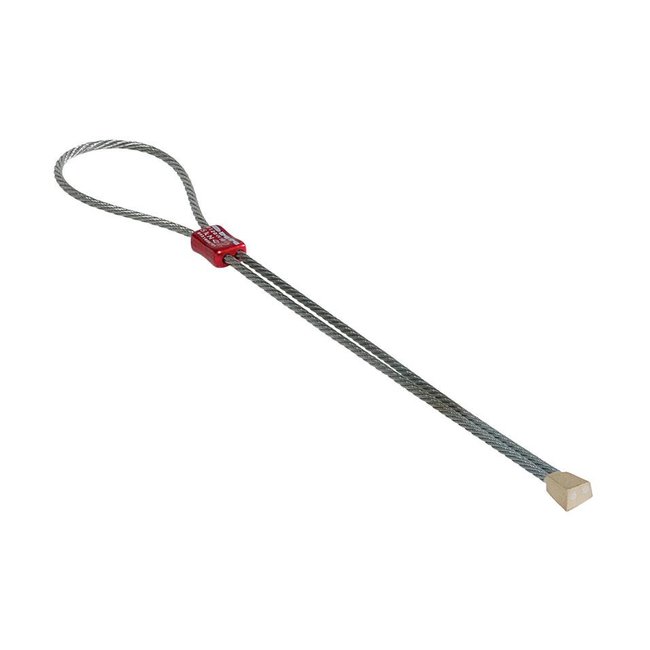

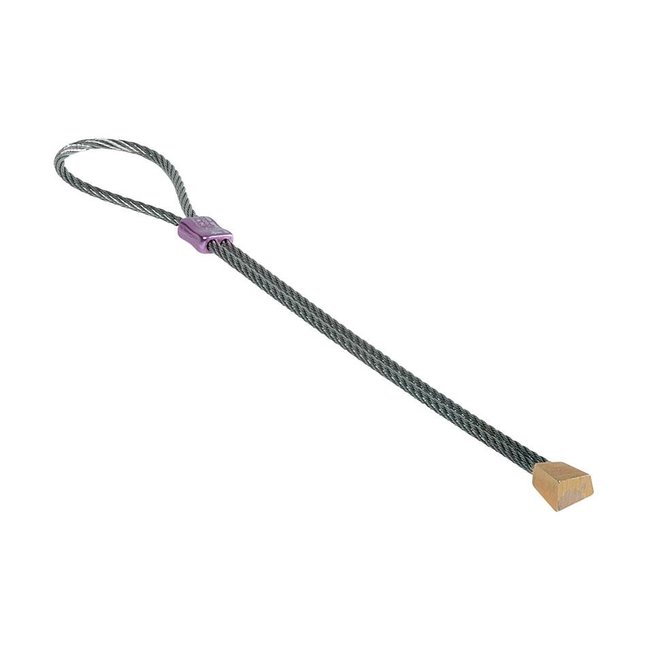

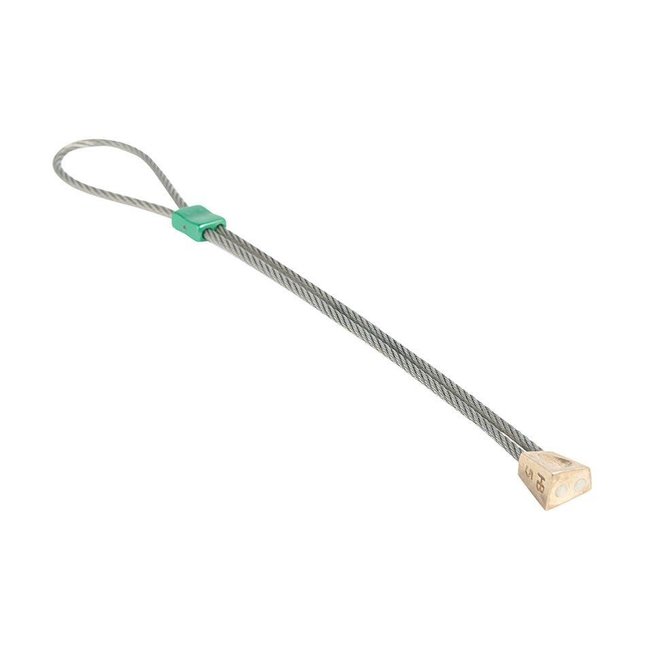

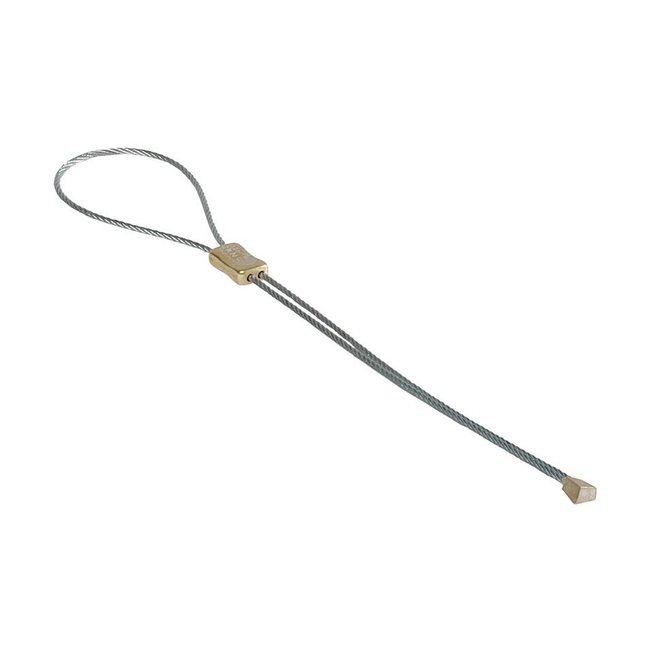

DMM HB Brass Offset

DMM
DMM HB Brass Offset
DMM HB Brass Offset
DMM HB Brass Offset
DMM HB Brass Offset
DMM HB Brass Offset
DMM HB Brass Offset
DMM HB Brass Offset
Out-of-stock

Brass Offsets are crucial for protecting small flared cracks, often fitting perfectly where nothing else will go. Read more..

We're currently out-of-stock.

Brass Offsets are crucial for protecting small flared cracks, often fitting perfectly where nothing else will go. The brass used for the head of the nut is soft enough to bite into placements, but hard enough to resist deforming and pulling through. Wires are soldered directly into the nut head, allowing a thicker wire to be used and increasing overall strength. The colour coded swage gives easy size selection and allows the Brass Offset to self equalise when loaded, making the most of marginal placements.

  • Micro protection for small cracks
  • Asymmetrical taper gives stable placements in offset cracks
  • Wires soldered directly into heads for strength
  • Brass heads for optimal characteristics in marginal placements.
  • Colour coded for easy size identification
  • Passive protection works in wet and icy conditions

Weight
4g (0) / 7g (1) / 9g (2) / 10g (3) /14g (4) / 17g (5) / 24g (6)
Strength
2kN (0) / 4kN (1) / 5kN (2) / 5kN (3) / 7kN (4) / 7kN (5) / 10kN (6)
Range
3.7-5.5mm (0) / 4.2-6.5mm (1) / 5.6-7.5mm (2) / 6.0-8.5mm (3) / 7.5-10.2mm (4) / 8.6-11.7mm (5) / 9.8-13.9mm (6)
Weight
4g (0) / 7g (1) / 9g (2) / 10g (3) /14g (4) / 17g (5) / 24g (6)
Strength
2kN (0) / 4kN (1) / 5kN (2) / 5kN (3) / 7kN (4) / 7kN (5) / 10kN (6)
Range
3.7-5.5mm (0) / 4.2-6.5mm (1) / 5.6-7.5mm (2) / 6.0-8.5mm (3) / 7.5-10.2mm (4) / 8.6-11.7mm (5) / 9.8-13.9mm (6)
