DMM Triple Attachment Pulley

DMM
DMM Triple Attachment Pulley
Out-of-stock

3 attachment points give the Triple Attachment Pulley a wide variety of connection options. Read more..

Available by Special Order. Contact [email protected]

If we don't have this item in-stock, it's available through Special Order. Please contact [email protected].


3 attachment points give the Triple Attachment Pulley a wide variety of connection options. A hot forged, rope friendly body is kind on textile equipment, while fairlead flares maintain efficient movement.

  • Three attachment points allow the Triple Attachment to be rigged in a wide variety of ways, including off centre hanging to reduce wear on ropes.
  • The pulleys side plates are angled away from the sheave, giving a reduced bend radius and increasing efficiency if the ropes run over them.
  • The pulley body is hot forged to reduce the number of edges on the pulley. This reduces the amount of wear ropes experience when they run over the pulley body.
  • Stainless steel spindles increase pulley lifespan by resisting corrosion.
  • All attachment points are curved, allowing safe connection with splices and knots as well as carabiners.
  • Bearings are more efficient than bushings, reducing friction and making movement and control of loads easier.
Ideal Use
Work / Rescue
Weight
133g
Efficiency (%)
-
Max Rope Diameter (mm)
14mm
Strength
30kN
Working Load Limit
6kN (3kN on one rope strand)
Ball Bearings
Yes
Side Plate Material
Aluminum
Ideal Use
Work / Rescue
Weight
133g
Efficiency (%)
-
Max Rope Diameter (mm)
14mm
Strength
30kN
Working Load Limit
6kN (3kN on one rope strand)
Ball Bearings
Yes
Side Plate Material
Aluminum
Sheave Plate Material
Aluminium
Sheave Diameter (mm)
-
Certification(s)
EN 12278:2007

You May Also Like

Petzl Minder PMP Pulley

MINDER is a high-strength pulley designed for rescue profess..
C$104.95

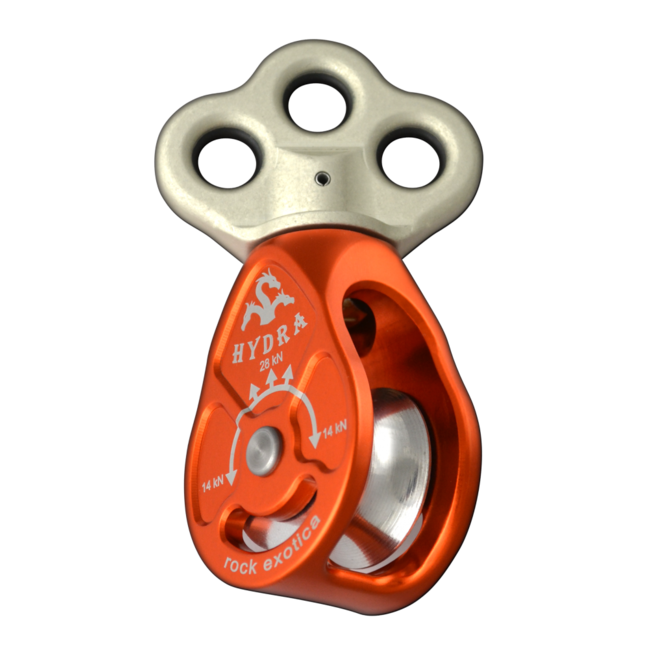

Rock Exotica Hydra Pulley
