Home / Steel Anchorage Connector - 5/8" Clearance Hole

C$24.95 C$24.95
Add to cart

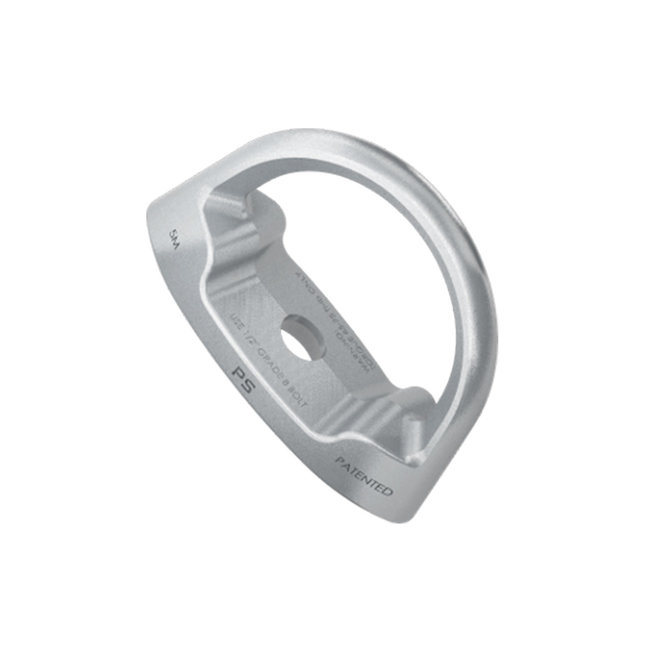

PenSafe Steel Anchorage Connector - 5/8" Clearance Hole

PenSafe
PenSafe Steel Anchorage Connector - 5/8" Clearance Hole
PenSafe Steel Anchorage Connector - 5/8" Clearance Hole
C$24.95 C$24.95 Excl. tax
Price Match Policy
Returns & Warranty Policy
In Stock

Drop Forged Steel - 3732 Anchorage Connector. Read more..

Wish List Compare
In Stock: 4-7 Business Days.

If we don't have this item in-stock, it's available through Special Order. Please contact [email protected].

Drop Forged Steel - 3732 Anchorage Connector.

Specifications:

  • 3732 Anchorage Connector
  • Drop Forged Steel
  • 100% proof loaded to 3,600 lbs (16kN)
  • Min tensile strength 5,000 lbs (22.2kN)
  • Recommended bolts for anchorage connector installation: minimum grade 5 quality with lock washer.
  • Available clearance hole & Recommended torque values:
    • 65-75 ft-lb for a 1/2 clearance hole (13 TPI bolt)
    • 145-155 ft-lb for a 5/8 clearance hole (11 TPI bolt)
    • 240-250 ft-lb for a 3/4 clearance hole (10 TPI bolt)
  • Weight: 16oz (450gm)

Warning: The recommended installation torque values listed for anchorage connectors are based on the use of the minimum hardware grades also listed. Any hardware substitution of different grades would require recalculation of appropriate installation torque values.
